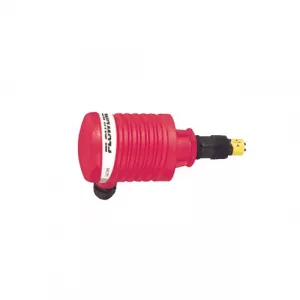

Flowline, AT12-1610, Thermo-Flo 3/4″ NPT Compact Liquid Flow Controller w/ Short PP Sensor & Strobe Alert
Features:
- Rugged Polypropylene-Ryton or PVDF sensor for corrosive liquids and gases.
- Fail-safe relay control of pumps or valves with 0-60 second delay.
- Polypropylene enclosure rated NEMA 4X with swivel base for conduit alignment.
- Optional strobe brings immediate attention to flow alarm conditions.
- Invert switch changes relay state from NO to NC without rewiring.
- Solid state sensor is not damaged by over-ranging flow velocities.
Application:
Offered in liquid and gas sensor types, the general purpose flow switch package provides reliable no or low-flow detection of relatively clean non-coating media with a 16A compact flow controller for pump or process protection. Liquid examples includes water and sulfuric acid. The optional flash alarm brings attention to low-flow alarm conditions. Available in Polypropylene-Ryton and PVDF, the short flow sensor is used in pipe or ducting from 1/2″ to 1 1/2″, and the long flow sensor is used in 2″ and up. The flow switch set point may be adjusted from 0.04 to 3 fps in liquids, or 1 to 90 fps in gases for low-flow control. The flow sensor is best applied in applications with relatively constant temperature.
Includes:
- Thermo-Flo XT10 Liquid & Gas Flow Switch (Part : FT10-1305).
- Switch Pro Compact Relay Controller (Part : LC10-1002).
