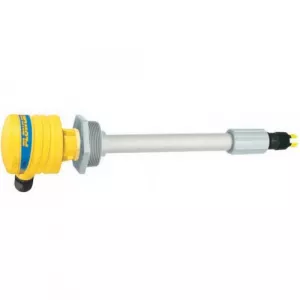

Flowline, AV16-4247-A, Switch-Pak 1-1/2″ NPT Compact Junction Box w/ Buoyancy PP Sensor & SPST Relay
Features:
- Polypropylene or PVDF single-point level switchpackage for corrosive liquids.
- 60VA relay or 15VA dry contact selectable NO or NCvia wiring.
- Offered in 3 sensing technologies for broad applicationcoverage: ultrasonic, vibration & buoyancy.
- Polypropylene enclosure rated NEMA 4X with swivelbase and terminal strip.
Application:
The general purpose level switch package providesreliable, high or low liquid level detection with onerelay or reed switch output and a compact junctionbox for integral wiring termination. Available inthree level sensor technologies, select the sensortype based upon your application media. Thispolypropylene or PVDF liquid level switch packageis broadly applied in bulk storage, sump and daytank level applications as a high level alarm or lowlevel alarm.
Key Benefits:
- Mount on the top wall of tank.
- Select length for either high or low switchpoints.
- Switch output interfaces directly with PLC/SCADA.
- Ideal for high alarm/low alarm indication/control.
- Can be used as low level pump protection orhigh level overflow protection.
