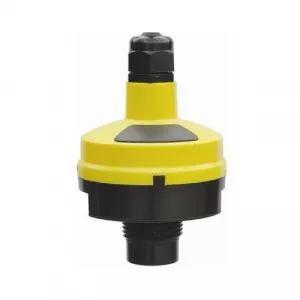

Flowline, DL24-00, EchoPod 9.8′ Range Multi-Function Ultrasonic Level Transmitter, 1″ NPT
The general purpose ultrasonic level transmitter provides continuous level measurement up to 9.8′ (3m) with a 4-20 mA signal output, and is configured via our free Webcal software. The level sensor has 4 programmable relays with selectable hysteresis and fail-safe logic. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is widely selected for day tank, skid, IBC, sump and process tank level applications.
Features:
- Level detection, switch and control functions up to 9.8′ (3m)
- Configuration is fast and easy via WebCal software and USB adapter
- Narrow 2″ beam width and short 4″ dead band optimized for small tanks
- Four programmable relays for switch, pump or valve control and fail-safety
- 1 pump or valve with 3 alarms
- 2 pumps (lead-lag) with 2 alarms
- 2 pumps (duplexing) with 2 alarms
- 4 independent switch point alarms
- PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
- Automatic temperature compensation for accurate measurement
Success:
About 1.3M polyethylene tanks are sold in North America each year ranging in size from 1 to 15,000 gallons. Most of these are less than 6′ in height with capacities under 500 gallons. The largest markets are industrial manufacturing, municipal, agriculture and residential in chemical, water & wastewater applications. Over the past 10 years, customers have moved toward the use of smaller storage tanks with increased automation to lower cost. Today, mini-bulk tanks are a major product category. Flowline has developed a new multi-function sensor to meets the needs of this growing market. The DL24 EchoPod puts non-contact level measurement, relay switch and advanced control functions in the palm of your hand.
Applications:
- Calcium Hydroxide Level Measurement
- Salt Mining Sump Level Measurement
- Poultry Processing Chemical Measurement
- Seaweed Aquaculture Level Measurement
- Diesel Generator Level Measurement
- Cooling Tower Scrubber Level Measurement
- Mini-Bulk Tank Level Measurement Solution
Compatible Products:
- LI25 DataLoop™ Level Indicator
- LI55 DataView™ Level Controller
- LI90 Commander™ Multi-Tank Level Controller
- LC52 DataPoint™ Level Controller
