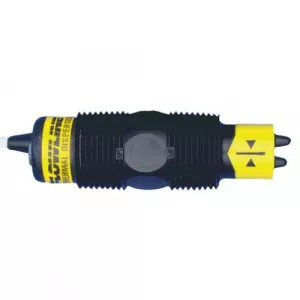

Thermo-Flo Short Liquid Flow Switch, 3/4″ NPT
Offered in liquid and gas sensor types, the general purpose flow switch provides reliable low or no-flow detection of relatively clean, non-coating media with one 1A relay output. Liquid examples include water and acetic acid. The short flow sensor is used in pipe or ducting from 1/2″ to 1 1/2″. The flow switch set point may be adjusted from 0.04 to 3 fps in liquids, or 1 to 90 fps in gases as a low-flow alarm. The flow sensor is best applied in applications with relatively constant temperature.
Features:
- Rugged Polypropylene-Ryton® sensor for corrosive liquids and gases
- Adjustable set point with LED for flow or no-flow status indication
- 60VA relay selectable NO or NC via power supply wiring polarity
- Solid state sensor is not damaged by over-ranging flow velocities
- Ideal for monitoring chemical feed pumps
- Use to monitor flow/no-flow conditions
Applications:
- Chlorine Dioxide Water Flow Detection
- Emergency Eye Wash Flow Detection
Compatible Products:
- LC8X Thermo-Flo™ Remote Level Controller
- LC30 Thermo-Flo™ Compact Level Controller
