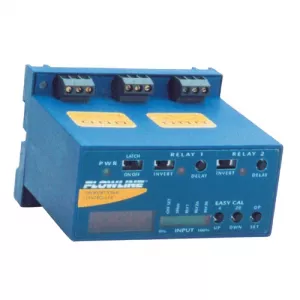

DataPoint Remote Relay Controller
Features:
- 3.5 digit LED display indicates level in custom engineering units.
- Fail-safe relay control of pumps or valves with 0-60 second delay.
- Easy set up with push button calibration for span, display and relay set points.
- 35 mm DIN rail mount polypropylene enclosure with removable terminal strips.
- Invert switch changes relay state from NO to NC without rewiring.
Application:
The general purpose controller provides single tank level indication with 2 relays, 1-3 set points and an isolated analog repeater. Relay 1 is configurable on a single set point. Relay 2 can be configured on a single set point or latched on two set points for automatic fill or empty control. Package the controller with any of our level transmitters. The NEMA 4X polycarbonate enclosure is a great choice for field mount installations and comes complete with a DIN rail mounting kit.
