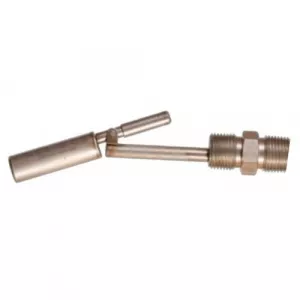

Flowline, LH35-S201, Switch-Tek 500 psi (34.5 bar) Horizontal High-Temp Float Level Switch
Offered in both vertical and horizontal configurations, the general purpose high-temp float level switches provide reliable liquid level detection of relatively clean water, diluted chemicals and light weight oils with a 30VA or 100VA reed switch output. Media examples include hot deionized water and cooking oil. The stainless steel liquid level sensors are mounted vertically inside the tank or horizontally through the tank wall as a high level alarm or low level alarm.
Features:
- 316 SS level sensor for high temp and pressure applications
- Dry contact reed switch selectable NO or NC via float orientation
- Offered in both vertical and horizontal mounting configurations for high or low level point detection
- Simple level switch for high temperature/ pressure applications
- Switches wire directly to a PLC/SCADA or controller
- Switches can be converted in the field from NO to NC
Compatible Products:
- LC4X Switch-Pro™ Remote Level Controller
- LC1X Switch-Pro™ Compact Level Controller
