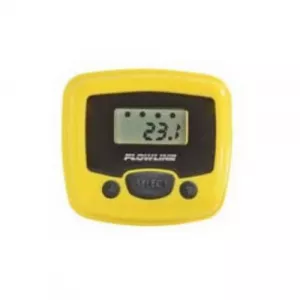

PodView Level Indicator
The general purpose indicator display tank level or volume in engineering units with 1-4 relay status indicators, and is compatible with any EchoPod level sensor that’s been configured with WebCal 6 software and updated to V50 firmware or higher. Powered by EchoPod, the field mount indicator may be located up to 4.5m (15′) from the sensor. PodView requires no programming. The indicator repeats the measured value, applicable relay status and set point configuration of the attached sensor. If EchoPod relay set point changes are desired, they can be easily made through the field indicator.
Features:
- Indicates tank level or volume and relay status
- Enables EchoPod relay set point changes in the field
- Powered directly by the attached EchoPod sensor
- Repeats EchoPod sensor data with no programming
- Corrosion resistant enclosure with NEMA 4 faceplate
Compatibility:
- EchoPod sensors operating on V50 firmware or higher
- V50 firmware is available via WebCal 6 software or higher
- Maximum distance between PodView & EchoPod is 4.5m (15′)
Compatible Products:
- DL14, DL24, DL34 EchoPod® Ultrasonic Level Transmitter, Switch & Controller
- DL10 EchoPod® Ultrasonic Level Transmitter
- DX10 EchoPod® Ultrasonic Level Sensor
- DS14 EchoPod® Ultrasonic Level Switch
