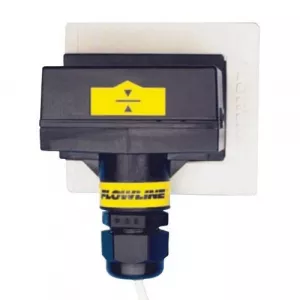

Flowline, LP50-5005, Switch-Tek Non-Intrusive Capacitance Level Switch with PVDF Bracket
Features:
- Non-intrusive level detection through plastic orfiberglass walls.
- Installed with polyethylene, polypropylene or PVDFadhesive 3M mounting brackets.
- Rugged PSO enclosure rated NEMA 4X with conduitconnector.
- 60VA relay selectable NO or NC via power supplywiring polarity.
Application:
The general purpose non-intrusive capacitance levelswitch provides reliable liquid level detection of waterbased conductive liquids with non-coating and/orscaling characteristics with a 1A relay output. Mediaexamples include hydrochloric, sulfuric acid and water.The liquid level sensor is bracket mounted on theexterior wall of non-metallic tanks and applied as ahigh level alarm or low level alarm.
Key Benefits:
- Ideal for high purity conductive liquids.
- Three different bracket materials makes attachmentto tank easy.
- Great for non-metallic or FRP tanks up to 1″thick.
- Use as a high or low level switch.
