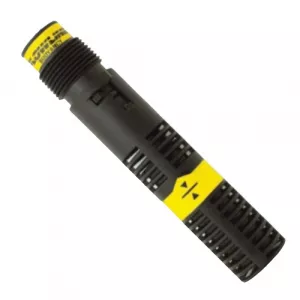

Flowline, LV10-1351, Switch-Tek 3/4″ Metric PP Vertical Buoyancy Level Switch
Features:
- Baffle body and stabilized float dampen out switch chatter.
- Submersible polypropylene or PVDF sensor and cable for corrosive liquids.
- 15VA dry contact selectable NO or NC state via wiring selection.
- Compatible with Smart Trak and Switch-Pak installation fittings.
Application:
The general purpose buoyancy point level switch provides reliable liquid level detection of relatively clean water and chemical solutions with a 15VA reed switch output. Media examples include boric acid and ultrapure water. The baffle body eliminates level switch chatter caused by turbulence. The submersible polypropylene or PVDF liquid level sensor is mounted vertically inside the tank as a high level alarm or low level alarm.
Key Benefits:
- Ideal for water and waste applications.
- Float can wire directly to PLC/ SCADA or controller.
- Dynamically stabilized float minimizes the effects of relay chatter.
- Cage helps protect from debris.
