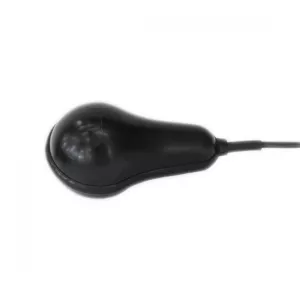

Flowline, LV42-7201, Switch-Tek Large Sump Float Level Switch with 20′ Cable
The general purpose sump float level switch provides reliable liquid level detection and is designed for the automation of pumps, specifically filling and draining of tanks, wells and reservoirs. The LV42 body is free of any irregularities, making it ideal for use in sewage water applications. The polypropylene body consists of a double airtight chamber with high-pressure melted polypropylene re-injection sealing to ensure a perfect seal against infiltration.
Features
- Mercury-free self counter-weighted float switch
- Submersible polypropylene body and PVC cable for corrosive liquids
- 10 (3) A @ 250 VAC dry contact selectable NO or NC state via wiring selection
- Compatible with counter weights and cable hangers for simple installation
- Ideal for use in sewage water applications
- Float can wire directly to PLC/ SCADA or controller
- Counter-weighted float minimizes the effects of relay chatter
- Double-airtight chamber helps protect from debris infiltration
