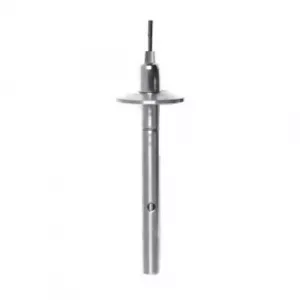

GF Piping Systems, 3-2819-S1, 159000085 Sanitary Tri-Clamp Flange Conductivity/Resistivity Electrode, 316 SST, 1″ to 1.5″, 0.01 Cell
Signet Conductivity/Resistivity electrodes are designed to provide versatile installation and accurate sensing across a very broad dynamic range. These electrodes are built with a controlled surface finish to ensure accuracy and repeatability. Coupled with Signet patented measuring circuitry, a three decade measurement range is achieved without the need for troublesome electrode platinisation. A platinum RTD (PT1000) located within the electrode allows optimal temperature sensing.
Features with all optional accessories:
- Tri-clamp 1 -1-1/2″
- PTFE insulator
- Standard process connections
- Controlled surface finish ensures accuracy and repeatability
- 3/4″ NPT Polypro
- In-line or submersible mounting
- Flow-through design
Application:
- Semiconductor Water Production
- Boiler Condensate
- Deionization
- Reverse Osmosis
- Rinse Water Monitoring and Control
- Salinity
- Pure Water Treatment
- USP Purified Water and WFI Water Production
- TDS (Total Dissolved Solids)
- Cleaner and Degreaser Concentrations
- Distillation
