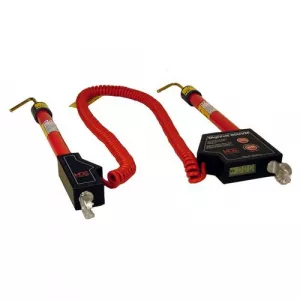

HDE, DVM-80UVM, Dual Stick Phasing Voltmeter with Peak Hold and Capacitive Test Point Modes, 5V-40kV; Includes (2) 025-OLPS-5 and CS-DVM Case
Universal Voltmeter Kit is a new and exciting addition to our phasing voltmeter product line. We have expanded the features of the DVM-80 series voltmeter and packaged it with an assembly of accessories, offering it as a complete, ready-to-use Universal Voltmeter Kit. Priced competitively as a complete kit, this may be the best value in the market today.
The DVM-80UVK is a complete kit that includes:
- Dual stick phasing voltmeter with overhead hook probes for use up to 40kV
- Add-on resistor sticks for measurements up to 80kV
- Underground bushing probes
- Cable fault tester
- Voltmeter proof tester
- Shotgun hotstick adapters
- Soft-sided, multi-functional carrying bag with built-in bucket hooks
Features
- New Peak Hold mode
- New triple auto ranging 3.5 digit display – reads in kilovolts from 5 volts to 80kV
- Highly accurate, within 1% of the reading
- Backl it display for easy reading in bright or dark conditions
- Measures AC and DC voltages
- Use on secondary voltages, starting at 5 volts
- Measure voltage on elbow test points, the meter displays system voltage
- Test underground cables for faults
- Auto shut-off
- Powered by a standard 9V alkaline battery in an easy to change battery case – no tools required
- Voltmeter weights 2.25 lbs.
- Made in the USA
This kit contains everything needed to:
- Perform voltmeter and phasing operations for virtually all overhead & underground applications
- Take measurements on secondary voltages starting at 5 Volts
- Take measurements on primary voltages up to 80 Kilovolts
- Take measurements on elbow test points with Test Point Feature
- Peak voltage reading can be held using the new Peak Hold Feature
- Perform underground cable fault testing with Cable Fault Tester
- Test the voltmeter before and after use with Voltmeter Proof Tester
