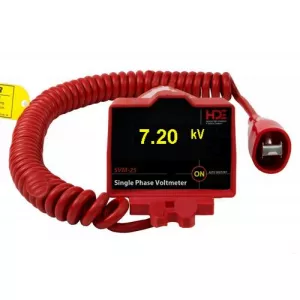

HDE, SVM-25/K01, Kit Includes SVM-25, (1) 025-OLPS-5, (1) PT-5000B and CS-SVM Case
Includes:
- Voltmeter (SVM-25)
- Overhead Hook Brass Probe (025-OLPS-5)
- Proof Tester® Voltmeter Tester (PT-5000B)
- Plastic Carrying Case for Voltmeter and Accessories (CS-SVM)
The Single Stick Digital Voltmeter, model SVM-25, is a compact, high accuracy digital voltmeter with capacitive test point mode and peak hold. Voltage is displayed on the large, bright LED display that can easily be read from a distance or in bright conditions. The SVM-25 measures voltage from 5V to 25kV. It can be used in both overhead and underground applications – accurate & repeatable to within 1% Oversized, bright LED read out makes voltage measurements easy to read from a distance or in low light conditions. Defined by the Jobsite – Lightweight, weather-resistant construction, ideal for use in tight work environments with minimum approach distances or with storm duty during disaster relief.
Features
- Peak Hold mode
- Capacitive Test Point mode
- Oversized digital LED display
- One button operation for test modes
- Ultra-light, high-strength molded housing
- Dual hotstick connections – universal spline and shotgun stick
- Highly accurate, within 1% of the reading
- Battery monitor with auto shut off
- Measures AC and DC voltages
- Powered by a 9V lithium or alkaline battery in an easy to change battery case – no tools required
