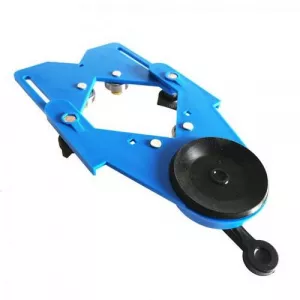

Hydro Handle, HHDGUIDE, Suction Cup / Drill Bit Hole Saw Guide Jig with Bearing
Features:
- Adjustable Hole Saw Drill Guide Jig Fixture with Suction Base – Integrated Water Hole
- Adjustable Plate for All Sizes of Hole Saws up to 3-1/4″ Drill Diameters – Dual Side Plate
- Removable Ball Bearings – Infinite Configurations – Flip the Plate for Larger Sizes up to 3-1/4″
- Secure The Guide with Suction Base – Feed Water through the Integrated Hole
- 1/8″ to 1-3/4″ Dia-mond Hole Saws Use Plate Face A without Ball Bearings
- 7/8″ to 3-1/4″ Dia-mond Hole Saws Use Plate Face B with Ball Bearings
Instructions:
- Adjust the sliding plate for the size of the hole saw – drill bit you want to use. Once side of the plate is for sizes up to 1-3/4″ and flip the plate for larger sizes up to 3-1/4″.
- Fix the guide using the suction base exactly where you want to drill the hole. Check the drill guide location and slider position before you start drilling.
- Using water as coolant, start the hole. You can spray the water or use the integrated hole.
- Use the guide until the drill bit – hole saw makes an initial mark deep enough to keep the bit in position. You can remove the guide and continue drilling.
- While drilling, continuous water use required to cool down the Dia-mond drill bit / hole saw
