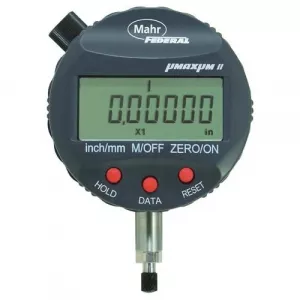

Mahr, 2034203, Umaxum II +/- 0.04″ Range 0.375×1.5″ Stem Advanced Black Flat Digital Comparator
Features
- Inch/Metric – operator selectable with switchable resolution.
- Normal / Reverse Sensing
- Preset capabilities to view actual size.
- “Absolute” Transducer – no overspeed errors or constant re-zeroing. Transducer always remembers its location, even if power is off.
- High resolution digital readout and analog bar graph – digital display shows deviation from zero or actual dimension size (Preset).
- Lightweight, contamination resistant – ruggedly built to withstand hard use – gasketed case, crystal and stem assemblies resist fluid contamination.
- Calibratable – if ever needed – values remembered even after battery change.
- Marconnect data output: USB, OPTO RS232C, Digimatic
- Auto-power down – provides extremely low battery consumption, assuring long life from readily available commercial batteries.
- Increased resolution (0.0002mm / 10 µinch) for today’s demanding tolerances.
- Unilateral Tolerances Go/NoGo Display Feature
- Dynamic mode operation: – Max, Min, TIR
- Two point difference measurement – provides comparison of two readings or measuring locations. Calculate the distance between 2 measured values
- Multiplier factor for ratio measurements
- Hold function – holds reading on display until ready to resume measuring
- Data output with serial number identification capability ID Data output with selectable continuous output or single request of reading(s)
- Locked Multiplier factor for ratio measurements
- Locked inch or mm display unit
- Disabled sleep mode (manual on/off)
- Power up in inch or mm unit on battery change
- Calibration mode lockout
- Setup mode lockout with password entry
