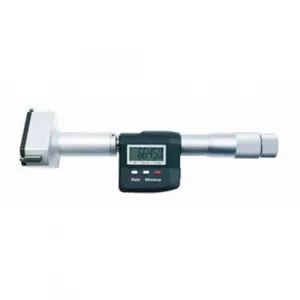

Mahr, 4191032, 44EWR Digital Self-Centering Inside Micrometer Micromar
Functions:
- 0 (Setting the display to zero for Relative measurement)
- ABS (Switching between Relative and Absolute measurement)
- mm/inch
- PR (Reference setting)
Features
- Basic Instrument consists of: Basic Unit 44 EXg and Measuring Head 44 Ak
- Threaded connection for changing the measuring heads
- Self-Centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°
- Anvils from 12 mm are carbide tipped
- From 12 mm the anvils can be used to measure to the bottom of a bore
- From 40 mm all measuring heads are made from aluminum to reduce weight
Applications
For measuring:
- through holes
- blind holes
- centering shoulders
