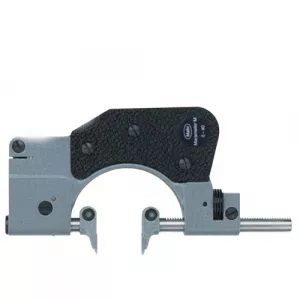

Features
- For diameters of small hubs, registers, shoulders on shafts and groove widths as well as for tooth span Wk as indirect, reference-free determination of tooth thickness on spur gears with straight and helical teeth
- Rugged, forged steel frame with heat insulators
- Measuring spindle is mounted in long guide way with lever-controlled retraction
- Anvil spindle can easily be fine adjusted
- Maximum wear resistance due to non-contact positioning in conjunction with carbide-tipped measuring faces
- Measuring spindle and anvil spindle made of hardened stainless steel; with extending carbide-tipped measuring jaws
- Constant measuring force as a result of built-in spring, thus eliminating user influence
- Universally applicable and extremely versatile, each instrument spans a broad measuring range, within this range any dimension and fit can be very quickly and easily adjusted
- Excludes indicating instrument
