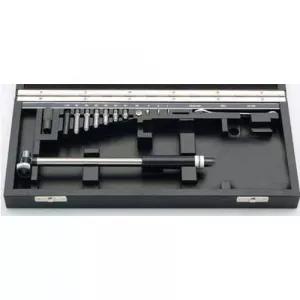

Includes
- Holder
- Measuring head
- Stationary anvil
- Wooden case
Features
- Measuring the diameter, roundness and conical form of a bore as well as the distances of plane-parallel surfaces
- Measuring head consists of a carbide-tipped moving anvil and an interchangeable stationary anvil which has a hardened steel ball; alternatively a carbide ball is available
- Transmission lever system transfers movement of the movable anvil to indicating instrument
- The broad centering bridge ensures automatic centering in the bore
- Insensitive to temperature due to both the shank and transfer rod being made from heat resistant Invar steel
- Highly resistant to wear and tear due to the carbide tipped moving anvil
- Constant measuring force due to built-in spring thus eliminating user influence
- Universally applicable and extremely versatile as every instrument spans a broad measuring range, within this range it is quick and easy to adjust to any size
- Measuring range 400 – 800mm (16 – 32″)
- Measuring depth 500mm/20″
- Measuring head, holder, extensions, right-angle attachments and depth stops are all part of this extensive modular system
- Excludes indicating instrument
