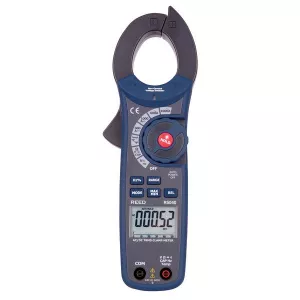

REED Instruments, R5040, 1000A AC/DC Clamp Meter with Temperature Measuring
R5040 Includes Only:
- AC/DC True RMS Clamp Meter
- Test Leads
- Thermocouple Wire Probe
- Thermocouple Adapter
- Battery
- Soft Carrying Case
Features:
- Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle and temperature
- 50000-count backlit LCD display and analog bargraph
- Low battery and overrange indicators
- Built-in non-contact voltage detector with LED indicator
- True RMS AC measurements
- Min/Max, display hold and relative mode
- Diode test and continuity check functions
- Durable double molded plastic housing
- Cat. III 600V safety rating
This autoranging True RMS clamp meter is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, duty cycle and temperature. Featuring a 50,000 count backlit LCD display with a 61-segment analog bargraph and double molded plastic housing, the R5040 keeps track of min/max readings and includes a non-contact voltage detector built into the clamp tip.
