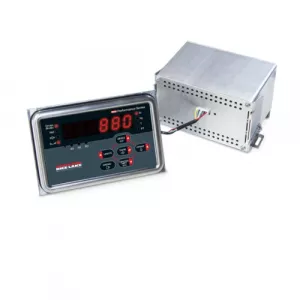

Rice Lake, 177983, 880 Performance Digital Weight Indicator And Controller, Panel Mount 5.5, Wider Boards, LED, 115-230VAC, with Option ProfiNet Protocol
880 Panel Mount
The sleek design of the 880 not only looks great, it also fits great into existing and new panels alike. At just under five inches deep, the efficiently designed enclosure fits easily into compact spaces with DIN-rail clips to make mounting quick and effortless. The 880’s modular design enables the display to be remotely mounted, especially useful for instances when it is inconvenient to mount the controller on a conventional panel.
Features:
- LED display, 0.56 in (14 mm), six-digit, 14-segment
- RS-232 or RS-485 serial port
- USB device port connects directly to a PC
- USB host port for connecting keyboard or flash drive (v4.0 or newer)
- Ethernet TCP/IP polled or continuous
- AC or DC models
- Built-in DIN-rail clips on controller box (panel mount)
- Display and controller can be separated up to 250 ft (panel mount)
- Hardware slot for one option card
- Operator functions through menu key for audit trail, preset tare, accumulator, time & date and setpoints
- Audit trail tracking for configuration and calibration changes. Password protection for user and configuration changes.
- 20 setpoints with latched batch engine or unlatched outputs
- Four onboard digital I/O channels
- Programmable ticket formats up to 1,000 characters for header text, gross, net, accumulator and setpoints
- Five-point linearization calibration
- Local/remote operation
- Multi-range or multi-interval weighing
- Filter settings for light, medium and heavy noise
Options:
- Fieldbus (Ethernet/IP, ProfiNet, Modbus/TCP, Profibus DP, DeviceNet, EtherCAT), analog output, relay board Requires Version 4.0 or newer: Dual serial output, 24-channel digital input/output
- Truck in/out program for 100 vehicle IDs
- Adapter plate for converting 310 A and 520 panel mounts
- Panel mount kit for universal enclosure
