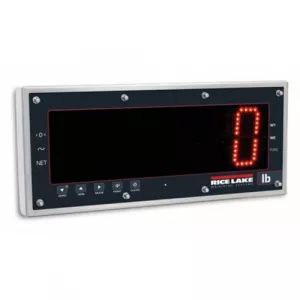

Use the remote displays to clearly display weight information at distances up to 150 feet. The displays are ideal for applications where weight needs to be viewed from a distance. They operate with a range of weight indicators to easily integrate with any system. The incoming format can be interfaced through a set function or with a manual setup.
They are designed for indoor, outdoor and washdown applications. With adjustable brightness, the six-digit, seven-segment character LED displays are easy to read even in direct sunlight.
The stainless steel enclosure is weathertight with an IP68 rating. With a standard anti-condensation air valve regulating humidity and pressure, these displays are protected for outdoor use. They are easy to mount with standard back brackets or optional side-mounting brackets. The back brackets have a 15-degree angle for clear visibility from below and side-mounting brackets can be used to support, hang or wall mount the remote display.
Features:
- Six-digit display with high-intensity LEDs
- Status LEDs for indication of active functions
- Single units only
- Integrated 5-key waterproof keypad
- Adjustment for six levels of brightness through the keyboard
- Includes removable back wall mount bracket
- Fitted with anti-condensation air valve to regulate humidity and pressure
- Configuration for format length, weight location, termination character
- Parameters for motion, overload, decimal point, net character, COZ
- Power from 12 to 24VDC, comes with 110-240VAC internal power supply
- Configurable as a weight indicator
- A/D 24 bit 4-channel conversion
- Connect 4 cells with summing/trimming or up to 4 independent weighing systems
