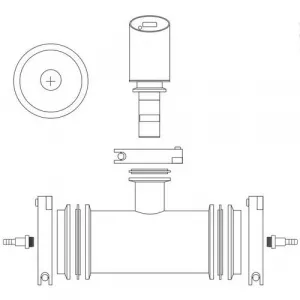

Place the flange caps on each end of the sanitary tee using the sanitary gaskets, and secure using the sanitary clamps. Place the 1.5” sanitary gasket into the top groove of the sanitary tee. Place the measurement area of the UVT-LED into the sanitary flange, and clamp in place using the tri-clamp fitting. Tighten the wing nut of the tri-clamp fitting to ensure no leaking occurs. Install a ¾” compression fitting and tubing into each of the flange caps.
Includes:
- UVT-LED-PW sensor
- 1.5” Sanitary clamp
- 1.5” Sanitary gasket
- 2” Sanitary tee
- 2” Sanitary gasket x2
- 2” Flange cap x2
- 2” Sanitary clamp x2
- 1/4” NPT Barbed fitting x2
